In modern architecture, building performance is evaluated not only by visual impact but by how effectively the building envelope responds to environmental conditions. Rising energy costs, increasing urban heat and sustainability mandates have brought facade energy performance into sharp focus. Architects and developers are looking beyond materials alone and towards engineered facade systems that actively contribute to thermal regulation and energy efficiency.

ACP panels' contribution to energy efficiency depends on how they are designed, installed and integrated into the overall facade system. When ACP cladding is part of a well-engineered assembly, particularly ventilated facades, it becomes an important element in enhancing building energy performance.

Understanding ACP Cladding in the Context of Facade Systems

ACP cladding forms the outer skin of the building envelope. Its energy performance is realised at the system level, influenced by:

The type of facade system, such as ventilated facades, non-ventilated, curtain walls, etc.
Substructure design and fixing methodology
Configuration of air cavities and insulation layers
Surface finishes and coatings, affecting solar reflectance, heat absorption and durability
Building orientation and exposure
Quality of installation and detailing

Properly integrated ACP cladding helps manage solar exposure, limits heat transfer to the structural wall and supports controlled thermal behaviour of the facade.

Ventilated Facades: The Foundation of Energy-Efficient ACP Applications

The most effective energy contribution of ACP cladding is achieved through rear ventilated facade systems. In this setup, ACP panels are mounted on a substructure that creates a continuous air cavity between the panel and the building wall.

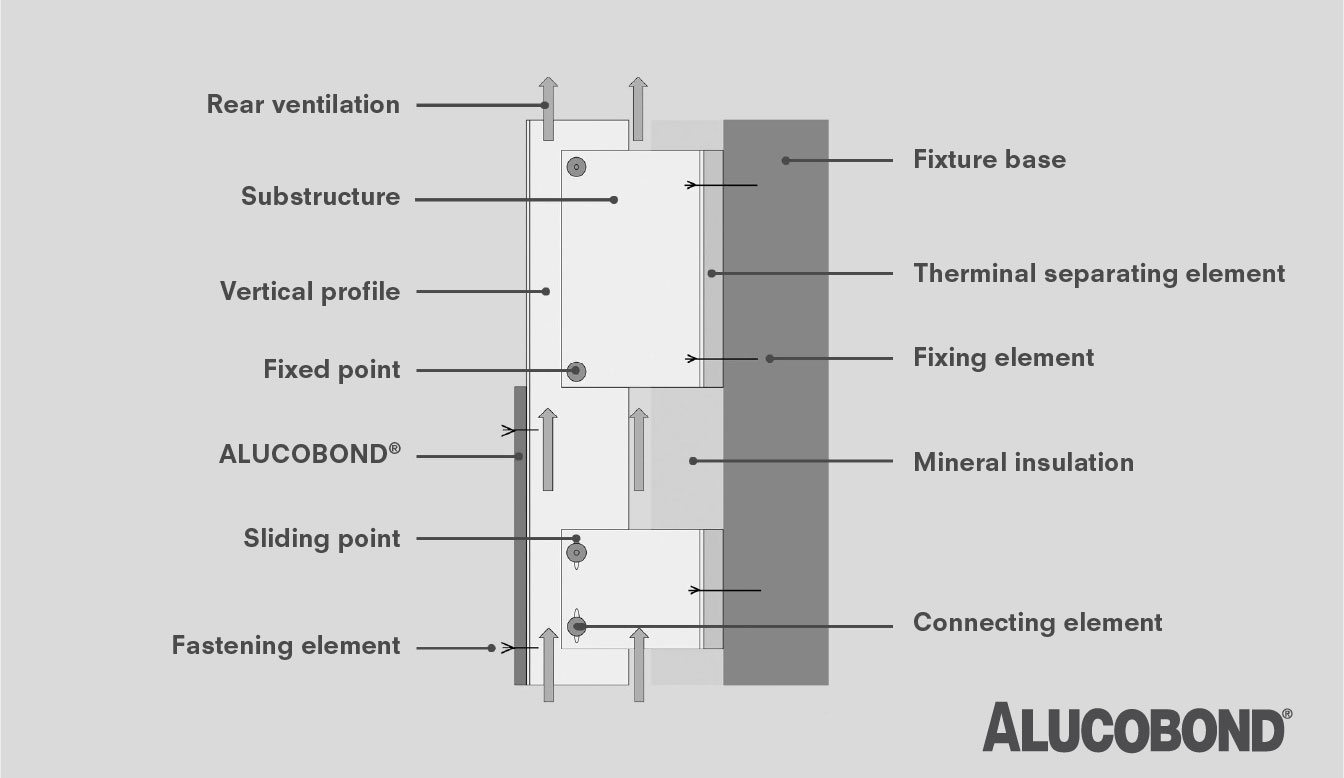

Rear-ventilated facade System

This cavity performs several essential functions:

Acts as a thermal buffer between exterior conditions and interior spaces
Enables solar heat reduction by dissipating absorbed surface heat
Facilitates natural air circulation through the chimney effect

As solar radiation heats the panel surface, air within the cavity warms and rises, generating the chimney effect—hot air exits at the top while cooler air enters from below. This passive ventilation continuously removes excess heat, enhancing facade energy performance.

ACP Cladding Insulation Properties as Part of a Composite Assembly

ACP panels are not insulation materials on their own; however, their contribution to thermal efficiency becomes significant when incorporated into a composite facade assembly. When combined with insulation layers positioned behind the panel and supported by a ventilated cavity, ACP cladding insulation properties support controlled thermal performance.

This layered assembly:

Moderates heat transfer across the building envelope
Reduces thermal bridging at the facade level
Stabilises internal temperatures across seasonal variations

During warmer periods, heat ingress is reduced, lowering cooling demand. In cooler conditions, heat loss is minimised. The result is improved indoor comfort, optimised HVAC loads and reduced operational energy consumption over the building lifecycle.

The Role of ALUCOBOND® in High-Performance Facades

ALUCOBOND® panels are engineered for advanced facade systems that demand precision, flatness and long-term stability. Their adaptability allows seamless integration across ventilated (rainscreen), non-ventilated, curtain wall, structural glazing and double-skin facade applications, supporting consistent facade energy performance.

Key technical attributes include:

Core Configurations: ALUCOBOND® panels are available with FR (Fire Retardant) and A2 mineral cores, enabling compliance with varying fire safety requirements while maintaining structural integrity and dimensional stability. Standard core variants provide optimal rigidity for lightweight facade constructions.
Panel Thicknesses and Formats: Available in a range of thicknesses and panel sizes, ALUCOBOND® enables flexible facade planning, efficient material utilisation and compatibility with complex architectural geometries.
PVDF/FEVE Coil Coated Finishes: High-performance PVDF/FEVE Coil Coated finishes are developed in accordance with AAMA 2605 performance specifications and comply with ECCA guidelines. These finishes deliver excellent UV resistance, long-term colour stability, surface durability and resistance to environmental exposure, ensuring reliable facade performance over time.
Lightweight Construction with High Rigidity: The aluminium composite panel structure offers an optimal balance between low weight and high stiffness, reducing structural load while preserving flatness across large facade spans.
Design and Finish Flexibility: A wide portfolio of colours, finishes and surface effects allows architects to achieve expressive facade concepts while meeting technical and performance requirements.
System Compatibility: ALUCOBOND® panels are designed for seamless integration within engineered facade systems, supporting precise detailing, stable installation and long-term system performance.
Sustainability Characteristics: The recyclability of aluminium, long service life and low maintenance requirements contribute to reduced material replacement and support sustainable facade strategies at the system level, aligning with the principles of sustainable building materials ACP when evaluated as part of a complete facade system.

Fire Safety and Responsible Facade Design

Facade energy performance must always be balanced with safety considerations. ALUCOBOND® FR and ALUCOBOND® A2 panels are classified in accordance with EN 1350-1 fire performance standards, supporting facade systems that meet stringent international fire safety requirements.

When incorporated into engineered facade assemblies, these fire-rated solutions enable responsible facade design that addresses both energy efficiency and fire compliance, supporting resilient and future-ready building envelopes.

Sustainability Through System Thinking

Sustainability in facade design is defined by how the entire system performs over its lifecycle rather than by a single material alone. Within engineered facade assemblies, ALUCOBOND® panels support sustainable construction through:

Full recyclability of aluminium
Long service life with minimal maintenance
Reduced material waste through durable facade solutions

When integrated into smart facade systems, ACP cladding contributes to reduced carbon footprint and supports system-level approaches aligned with green building certifications such as LEED and GRIHA.

Conclusion: ACP Cladding as a Performance Enabler

ACP cladding enhances facade energy performance when incorporated into well-engineered facade systems. Through ventilated facade design, layered insulation strategies and precise detailing, ACP cladding supports:

solar heat reduction and controlled thermal behaviour
stabilised indoor temperatures
reduced dependence on HVAC systems
long-term sustainability objectives

For architects and developers focused on durable, energy-conscious and future-ready buildings, ALUCOBOND® panels offer a dependable facade solution grounded in performance, compliance and lifecycle reliability.
